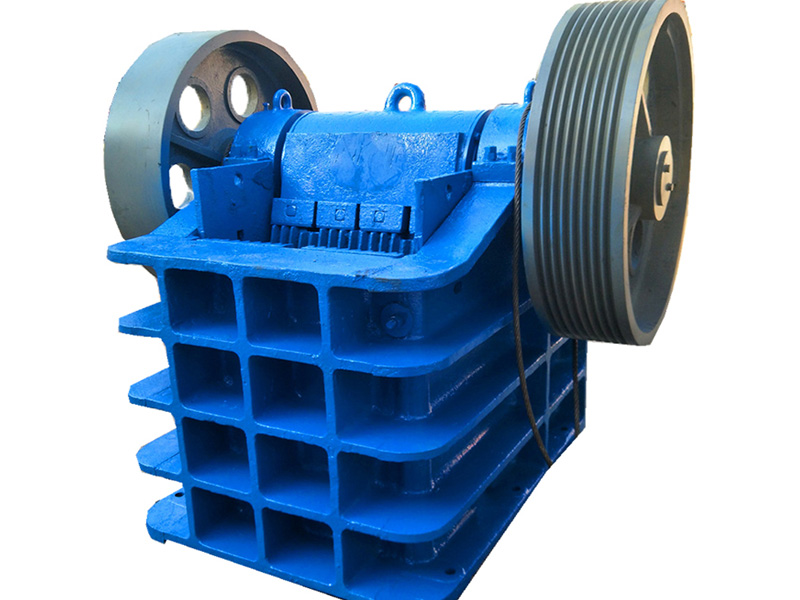

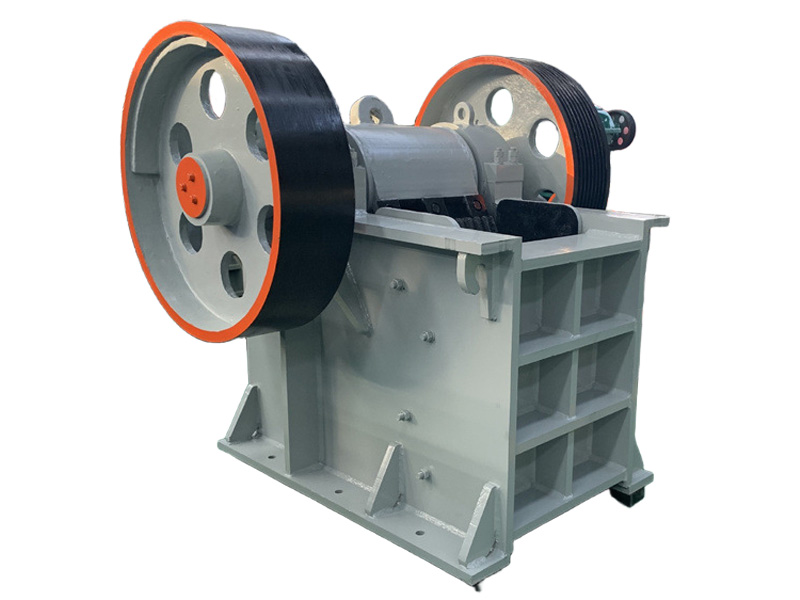

Jaw crusher is also called stone crusher. The crushing cavity is composed of two jaw plates, the movable jaw and the static jaw, which simulate the movement of the two jaws of animals to complete the material crushing operation. It is widely used in the crushing of various ores and bulk materials in mining and smelting, building materials, highways, railways, water conservancy and chemical industries. The maximum compressive strength of the crushed materials is 320Mpa.
| 型号 | 进料口尺寸 (mm) | 最大进料粒度 (mm) | 排料口调整范围 (mm) | 处理能力 (t/h) | 偏心轴转速 (r/min) | 电动机功率 (kw) | 总重量 (t) | 外形尺寸 (L×W×H) (mm） |
| Item No.: | Input Size: | T/H | KW | SIZE(MM) | ||||
| PE-150×250 | 150×250 | 125 | 10-40 | 1-3 | 250 | 5.5 | 0.8 | 720×660×850 |
| PE-200×300 | 200×300 | 180 | 15-50 | 2-6 | 260 | 7.5 | 1.2 | 910×750x 990 |
| PE-220×350 | 200×350 | 180 | 18-70 | 3-10 | 260 | 11 | 1.5 | 1000×870×990 |
| PE-250×400 | 250×400 | 210 | 20-60 | 5-20 | 300 | 15 | 2.8 | 1300×1090×1270 |
| PE-300×500 | 300×500 | 280 | 30-100 | 12-50 | 22 | 3.5 | ||
| PE-400×600 | 400×600 | 340 | 40-100 | 16-60 | 275 | 6极-30 | 7 | 1730×1730×1630 |
| PE-500×750 | 500×750 | 425 | 50-100 | 40-110 | 275 | 6极-55 | 12 | 1980× 2080×1870 |
| PE-600×900 | 600×900 | 500 | 65-160 | 50-180 | 250 | 6极-55 | 17 | 2190×2206x2300 |
| PE-750x1060 | 750x1060 | 80-240 |
