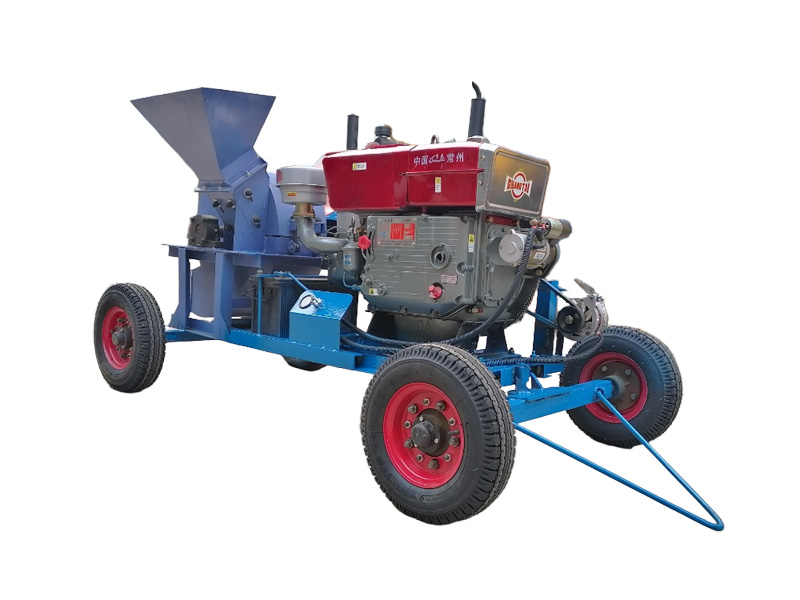

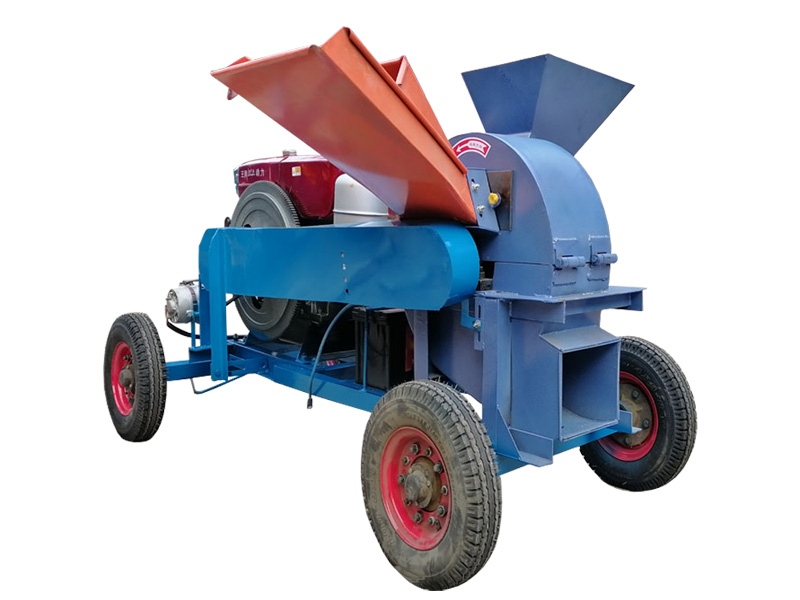

Wood chip crusher is a wood crushing and processing equipment specially used for crushing sawdust. It can crush wood with a diameter of about 40 centimeters, such as wood, wood blocks, planks, tree trunks, branches, bamboo, thatch, wheat straw, sorghum straw and other stalk-shaped materials. The crushed sawdust is mostly used as raw materials in industries such as papermaking, particleboard, density board, machine-made charcoal, and edible fungus cultivation. This series of machines has multiple models with different outputs and crushing capacities. The output size can be controlled by replacing the screens with different hole sizes. It is an ideal wood chip crushing equipment.
Model | 420 Type | 600 Type | 800 Type | 1000 Type | 1200 Type | 1500 Type |
Blade diameter(mm) | 420 | 600 | 800 | 1000 | 1200 | 1500 |
Number of blades(pc) | 4 | 4 | 6 | 4-6 | 8 | 8 |
Feeding opening diameter (mm) | 150*180 | 200*230 | 250*300 | 300*300 | 400*420 | 480*550 |
Power(kw) | 11 | 30 | 45 | 55 or 75 | 90 or 110 | 110 or 132 |
Diesel engine power (hp) | 15 | 36 | 102 | 176 | 217 | 217 |
Output(t/h) | 0.5-0.9 | 2-3 | 4-5 | 6-7 | 7-8 | 8-10 |
