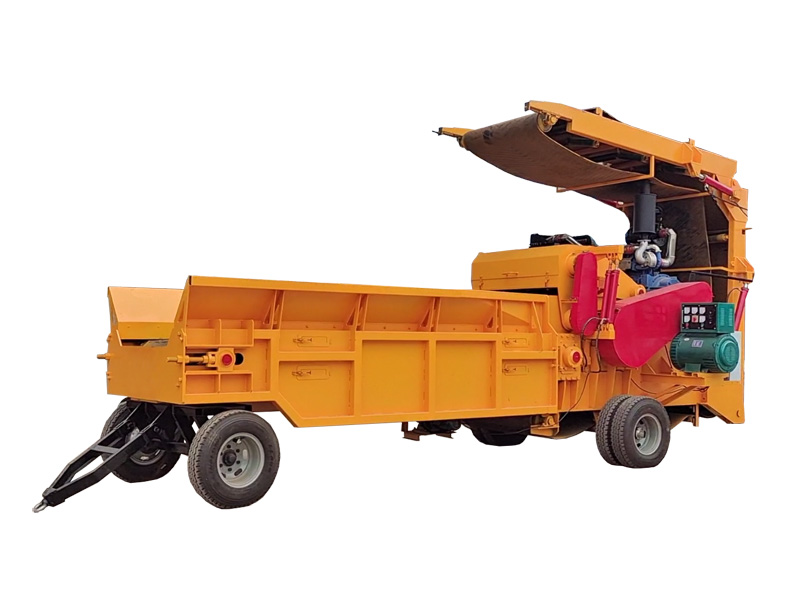

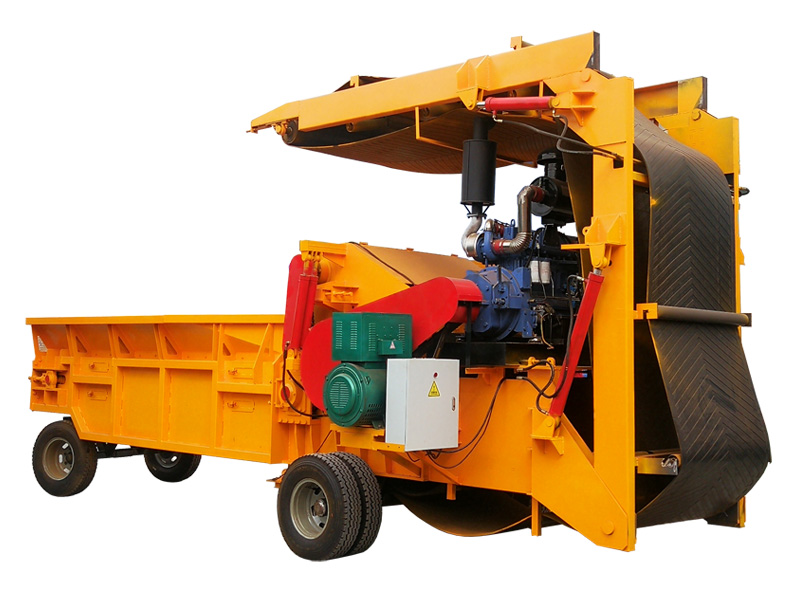

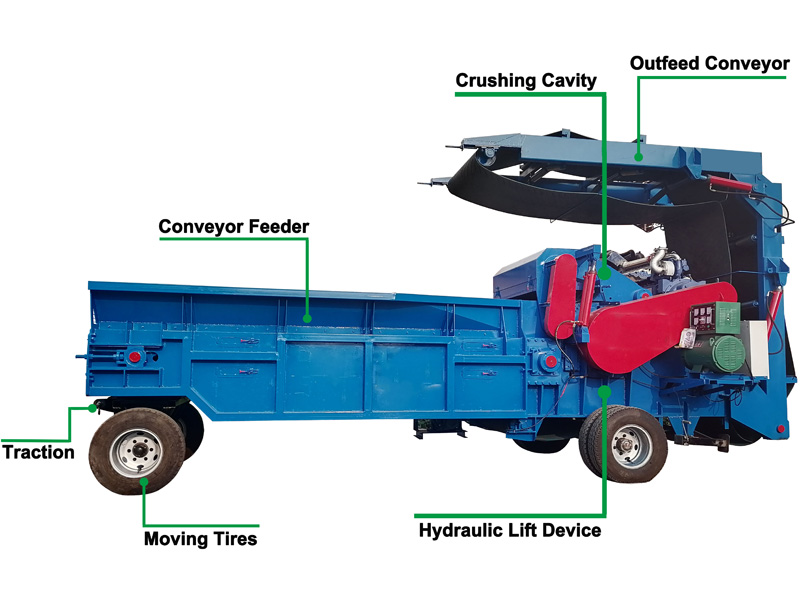

Wood horizontal grinder can process a wide range of raw materials, including various small-diameter materials, board skins, laths, wood scraps, log cores, building templates, bulk straw, cottonwood, reeds, etc. It has a wide range of applications. This machine adopts chain plate intelligent feeding, which can automatically adjust the feeding speed according to the load of the main motor, so that the machine can run at full load and avoid no-load operation, making the feeding smoother and greatly improving the production capacity. It is the ideal equipment for biomass power plants.
Model | 1000 Type | 1300 Type | 1400 Type | 1600 Type |
Knife roller diameter (mm) | 600 | 800 | 1050 | 1050 |
Knife roller speed (r/min) | 860 | 540 | 610 | 690 |
Number of flying hammers (pc) | 16 | 20 | 24 | 28 |
Number of blades(pc) | 2-4 | 2-4 | 2-4 | 2-4 |
Wood chip length (mm) | 25-80 | 50-100 | 50-100 | 50-100 |
Power(kw) | 110+5.5+7.5+1.5+3 | 132+5.5+11+1.5+5.5 | 160+11+5.5+3+5.5 | 220+11+15+3+7.5 |
Output(t/h) | 8-15 | 10-20 | 15-25 | 25-35 |
Size(m) | 8*2.1*2.6 | 8.3*2.3*2.9 | 8.4*2.45*2.9 | 8.5*2.65*2.95 |
Weight(t) | 11 | 13 | 18 | 22 |
