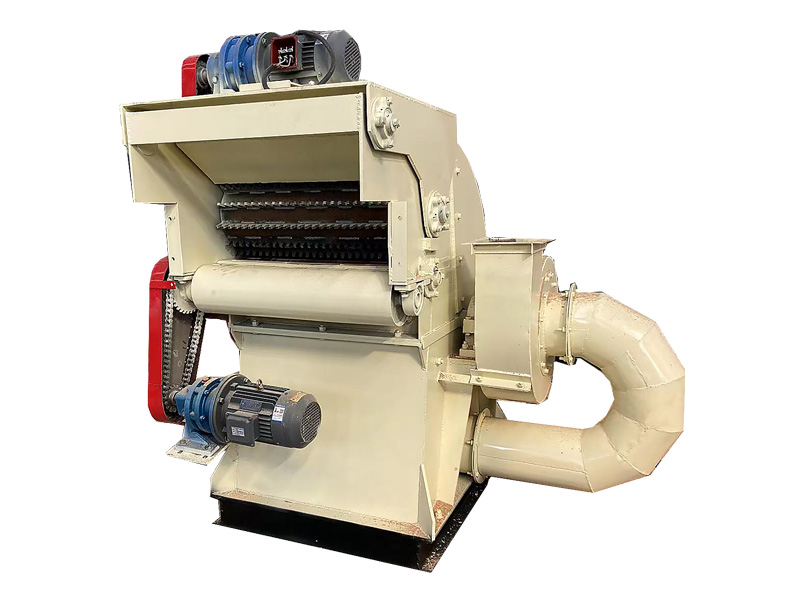

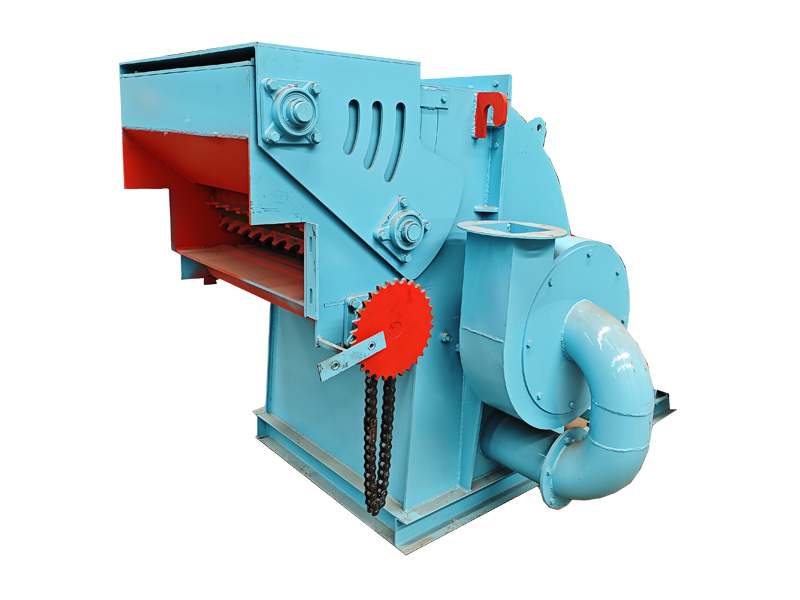

Forced-feed wood hammer mill is a kind of fine crushing equipment. The equipment can process a wide range of raw materials. It can crush various wood boards, wood, scraps, waste boards, branches, logs, and block-shaped coarse materials into sawdust and wood fiber products at one time, and the output particle size can be adjusted at will. The sawdust after crushing has the advantages of small particle size, obvious wood fiber, and uniform output. The whole set of equipment is driven by only one motor, low energy consumption, high output, good quality of sawdust products, and low processing cost. Forced-feed wood hammer mill can also be used for the production of raw materials for particleboard, sawdust board and high-density board.
Model | 600 Type | 800 Type | 1000 Type |
Rotation diameter(mm) | 620 | 720 | 820 |
Number of blades(pc) | 40 | 48 | 84 |
Blade thickness(mm) | 6 | 8 | 8 |
Feed conveying length (m) | 2 | 2 | 2 |
Power(kw) | 37+7.5 | 55+7.5 | 55 or 75+11 or 15 |
Output(t/h) | 0.8-1 | 1.8-2 | 2-3 |
