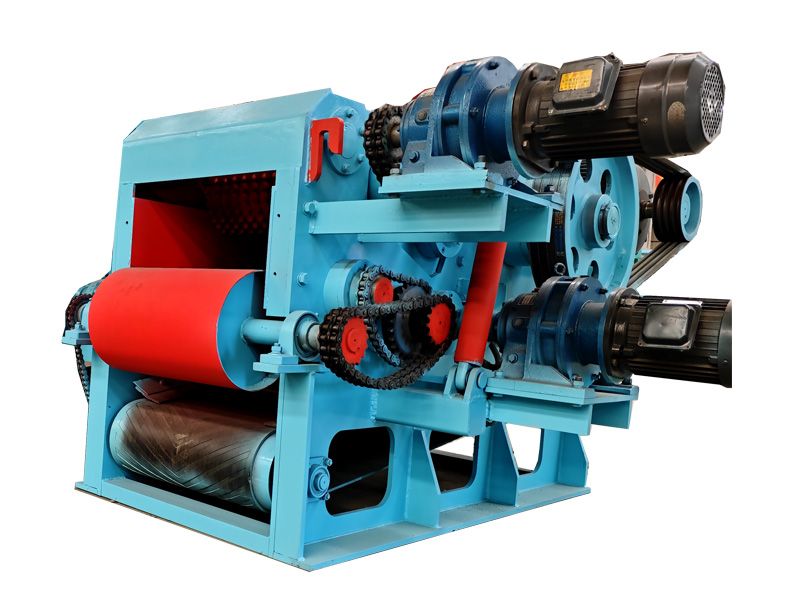

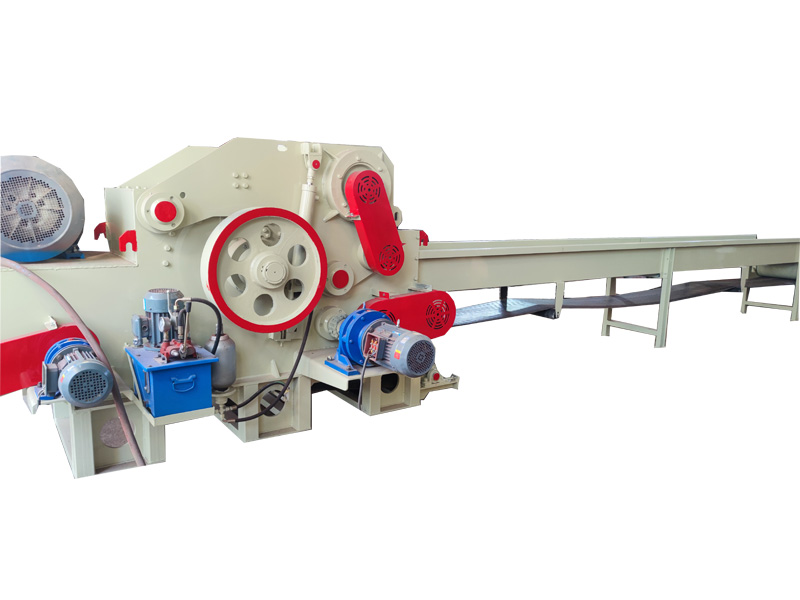

Drum wood chipper is a special equipment for preparing high-quality wood chips. It is suitable for paper mills, particleboard mills, fiberboard mills, straw mills, biomass power plants, wood chip production bases, wood chip export bases. It can cut logs and small-diameter wood into high-quality industrial wood chips with uniform length, smooth cuts, and uniform thickness. It can also cut branches, boards, etc. This equipment has a compact structure, high-quality chips, a wide range of raw materials, and is easy to operate and maintain.
Model | 213 | 215 | 216 | 218 | 2110 | 2113 |
Knife roller diameter (mm) | 300 | 500 | 650 | 800 | 1000 | 1300 |
Number of flying knives (pc) | 2 | 2 | 2 | 2 | 3 | 3 |
Feed opening(mm) | 120*300 | 140*400 | 240*540 | 350*700 | 400*700 | 450*700 |
Knife roller speed (r/min) | 730 | 592 | 550 | 540 | 530 | 500 |
Feeding speed (m/min) | 38 | 37.4 | 38 | 38 | 38 | 38 |
material diameter (mm) | 90 | 105 | 230 | 300 | 350 | 450 |
Wood chip length (mm) | 26 | 30 | 30-50 | 30-50 | 30-50 | 30-50 |
Power(kw) | 30+1.1+1.1 | 45+2.2+2.2 | 55+3+3 | 110+4+4 | 185+7.5+7.5 | 220+7.5+7.5 |
Output (m3/h) | 3-5 | 4-5 | 5-10 | 10-15 | 15-20 | 20-30 |
